Gentry Series 5400 Vinyl Windows
The Gentry Series Windows
The Gentry Series is the most complete vinyl line on the market today. This line includes a selection of horizontal sliding, single hung, double hung, casement, awning, picture window, bay, bow to match 3/4″ dual glazing standard or optional 1-1/8″ triple glazing and four frame mounting options offer an ideal solution for either new construction or replacement projects. See Warranty for glass breakage details.
Product Details
Finishes
Window Configurations
Triple Gazed Design
Frame Types
Hardware
Grid & Glass Options
Choice of these popular finishes with matching hardware keep lead times to a minimum.
Gentry Hinged Vinyl Window Configurations
Butt hinges and multi point hardware are standard for awning and casement windows. Both window styles feature nesting hardware that offers a smooth operation, more contemporary and integrated look so that the folding handle recesses in the operator cover. 3-1/4” width frame with 1” dual glazing standard and Low E glass is standard in all of our products or upgrade to our Extreme Low E glass. Several decorative glass options are also available to enhance the decor and design of your home. 1-1/8” overall triple glazed option available.

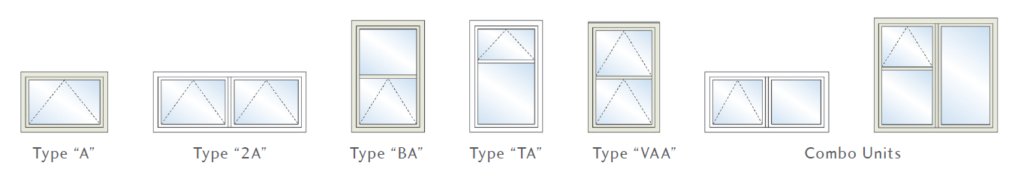

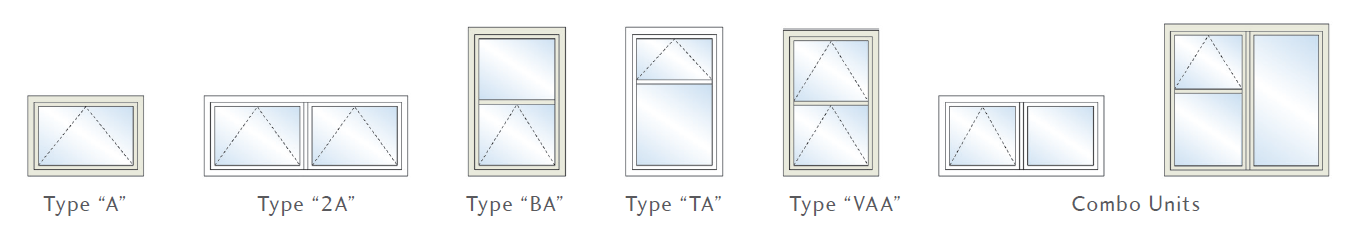

Awning Window Configurations
Hung horizontally, hinged on top and swings outward, providing optimal ventilation and constant airflow with protection from the elements. Several configurations are available for architectural enhancements to your home.

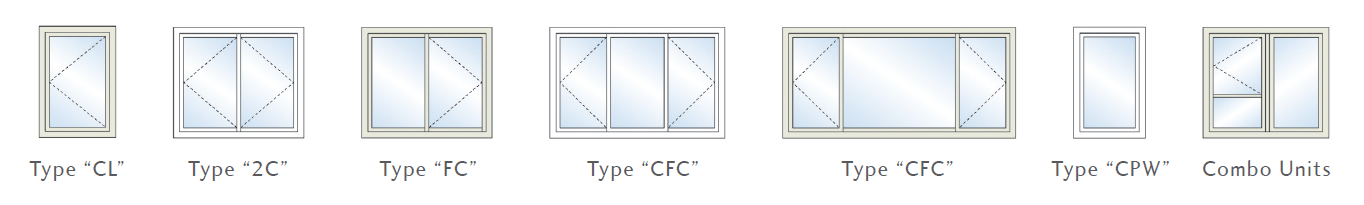

Casement Window Configurations
Hinged on the side, swings outward like a door, providing excellent air circulation. The sitelines are architecturally appealing for any style of home.

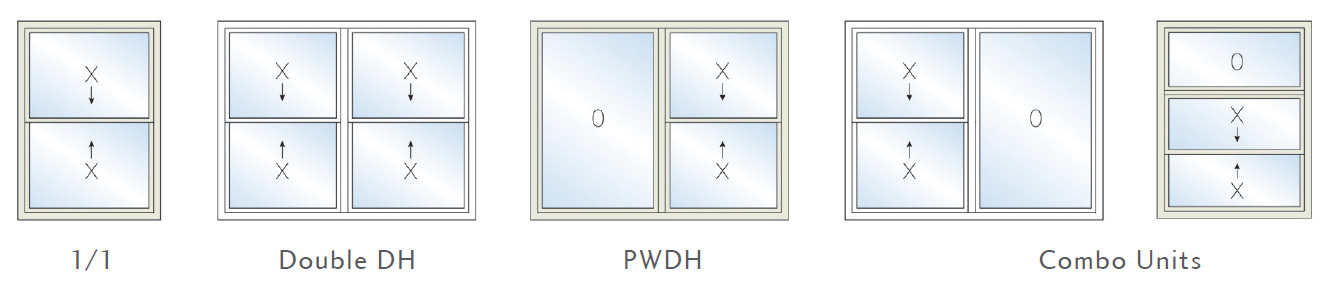

Gentry Double Hung Configurations
- Even site lines.
- Both vents tilt in for ease of cleaning.
- Low profile latch integrated into double walled pull rail for a clean modern look.
- Hold open feature makes it easy to spot an unlatched window.
- Pull rail runs full length for easy operation.
- 3/4” dual standard glazing with choice of Low E or Extreme Low E glass. Optional 1-1/8” triple glazing.
- 3-1/4” Frame.

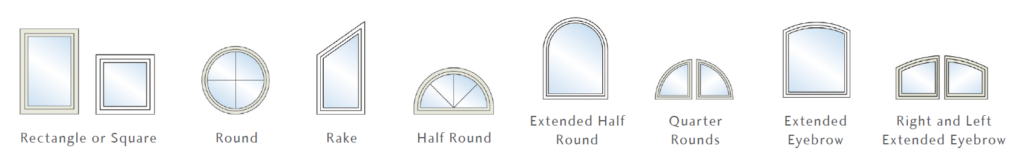

Gentry Picture Window Configurations
We offer many shapes and configurations to enhance the architectural beauty of your home

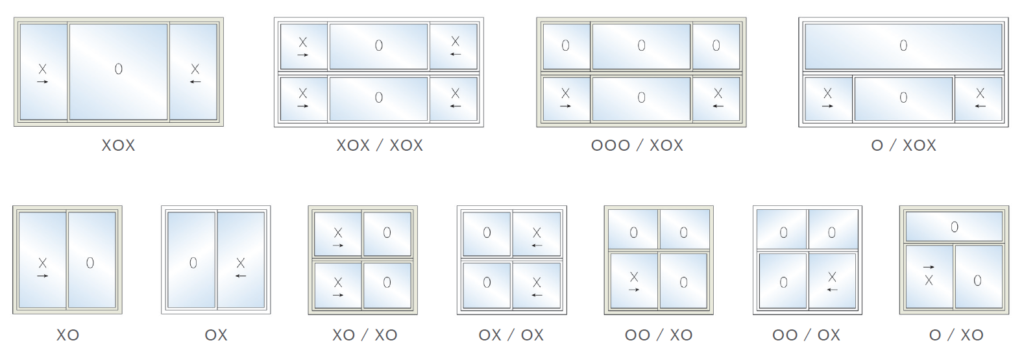

Gentry Horizontal Sliding Configurations
- Even site lines.
- Sleek low profile latch with “hold open” feature to easily spot an unlatched window.
- Latch is integrated into a double walled full length pull rail with finished end caps for a clean modern look.
- Pull rail runs full length for easy operation.
- Oversized rollers with stainless steel axles to provide a smooth gliding window with improved operating force.
- Rollers have a 3 position height adjustment to custom fit the installation.
- 3/4” dual standard glazing with choice of Low E or Extreme Low E glass. Optional 1-1/8” triple glazing.
- 3-1/4” Frame.
Gentry Single Hung Configurations
Both side load and tilt In styles feature a sleek low profile latch integrated into a double walled pull rail for a clean modern look that does not interfere with the even site lines. The hold open feature makes it easy to spot an unlatched window and the full pull rails are designed for ease of operation. 3-1/4” width frame with 3/4” dual glazing standard and Low E glass is standard in all of our products or upgrade to our Extreme Low E glass. Several decorative glass options are also available to enhance the decor and design of your home. 1-1/8” overall triple glazed option available.

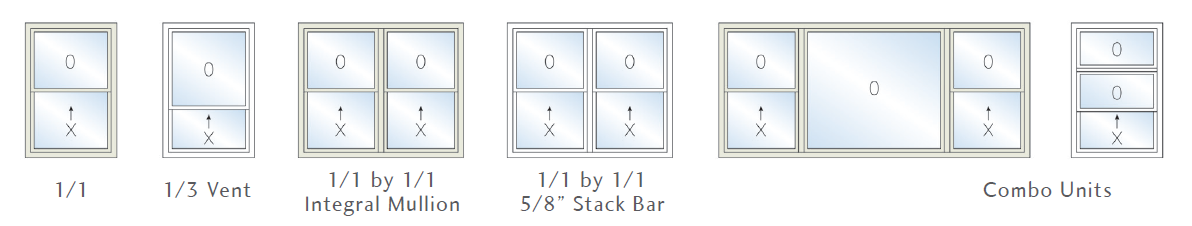

Side Load Single Hung Configurations
Features anti-lift sash blocks and oversized guides for easy vent removal and cleaning.

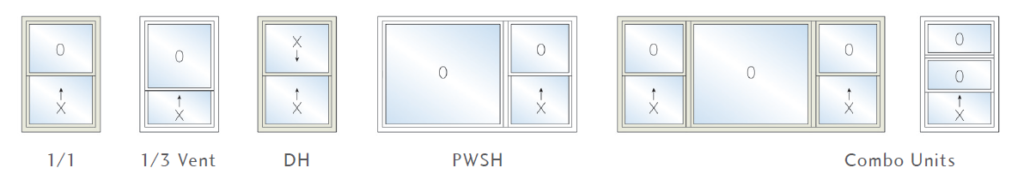

Tilt In Single Hung Configurations
Tilt in design allows for easy cleaning and inverted balance with built in shoe for easy vent removal.

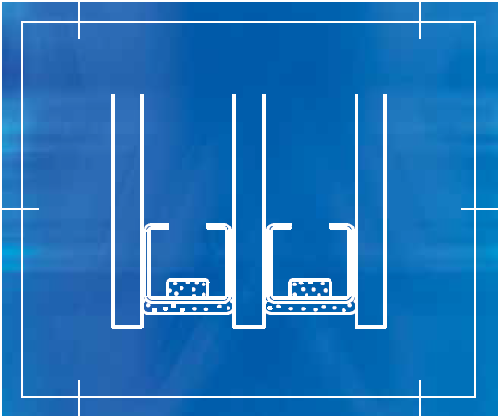

Triple Glazed Design
- 3 pieces of glass in the insulated unit
- 2 pieces of High Performance Low E Glass
- Optional number 6 surface Low E Glass

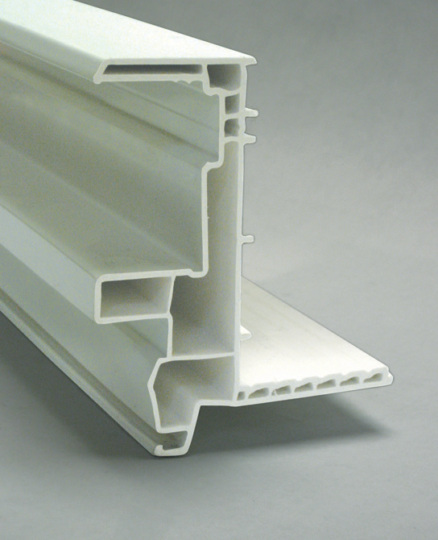

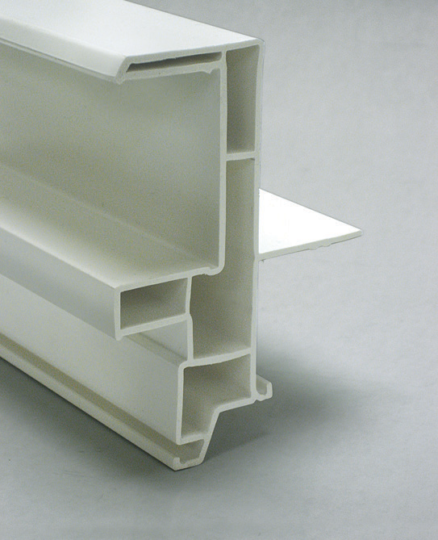

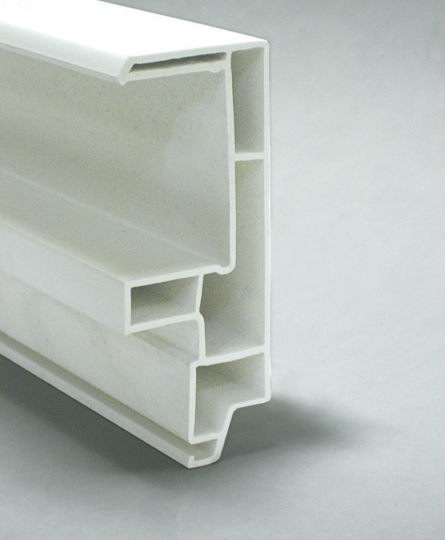

Frame Types For Every Project

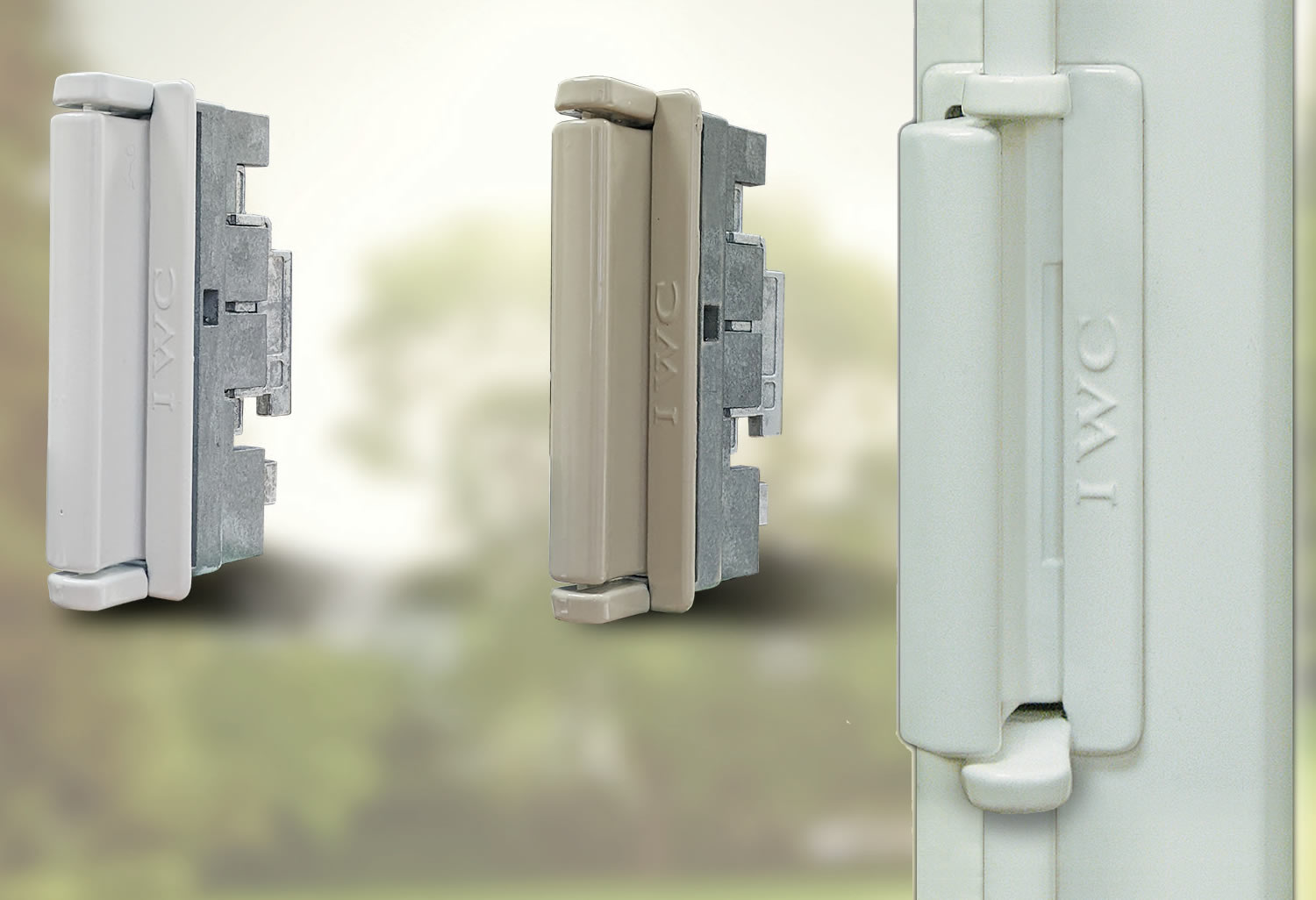

Gentry 5400 – Sleek Low Profile Latch
The 5400 window latch is designed with one simple movement and has a sleek, low profile design for a streamlined look. The window lock is difficult to view from the exterior, creating a streamlined look and increased security.
Choice of these popular finishes with matching hardware keep lead times to a minimum.
Colors shown are approximate due to printing limitations.
(Ask your Dealer about availability)
Grid Options
Select sculptured or flat grid designs in a variety of patterns for custom looks.
Typical Grid Patterns
Some of the more common patterns shown. Custom patterns available.
Decorative Glass Options
Light and privacy with textured and tinted glass. Some of our popular choices:
Additional Glass Options
All windows and doors have standard dual glazing with choice of Low E or Extreme Low E glass, plus these additional glass options.
- LAMINATED GLASS: Two pieces of glass with an inner layer of transparent plastic for safety and sound reduction.
- TEMPERED GLASS: Strong, break-resistant safety glass. Breaks into small pieces when shattered.
- ARGON GAS: An inert, non-toxic gas used in insulating glass units to reduce heat transfer.
- ENERGY SHIELD XTREME GLASS: Blocks more heat and ultraviolet light.
- ILE GLASS: A hard coat of Low E on the 4th surface.
