Keltic 7600 / 7700 Sliding Doors
Keltic Series 7600 / 7700 Sliding Door System
Keltic 7620 Series LC 25 | Keltic 7622 Series LC 35 | Keltic 7720 Series CW 40

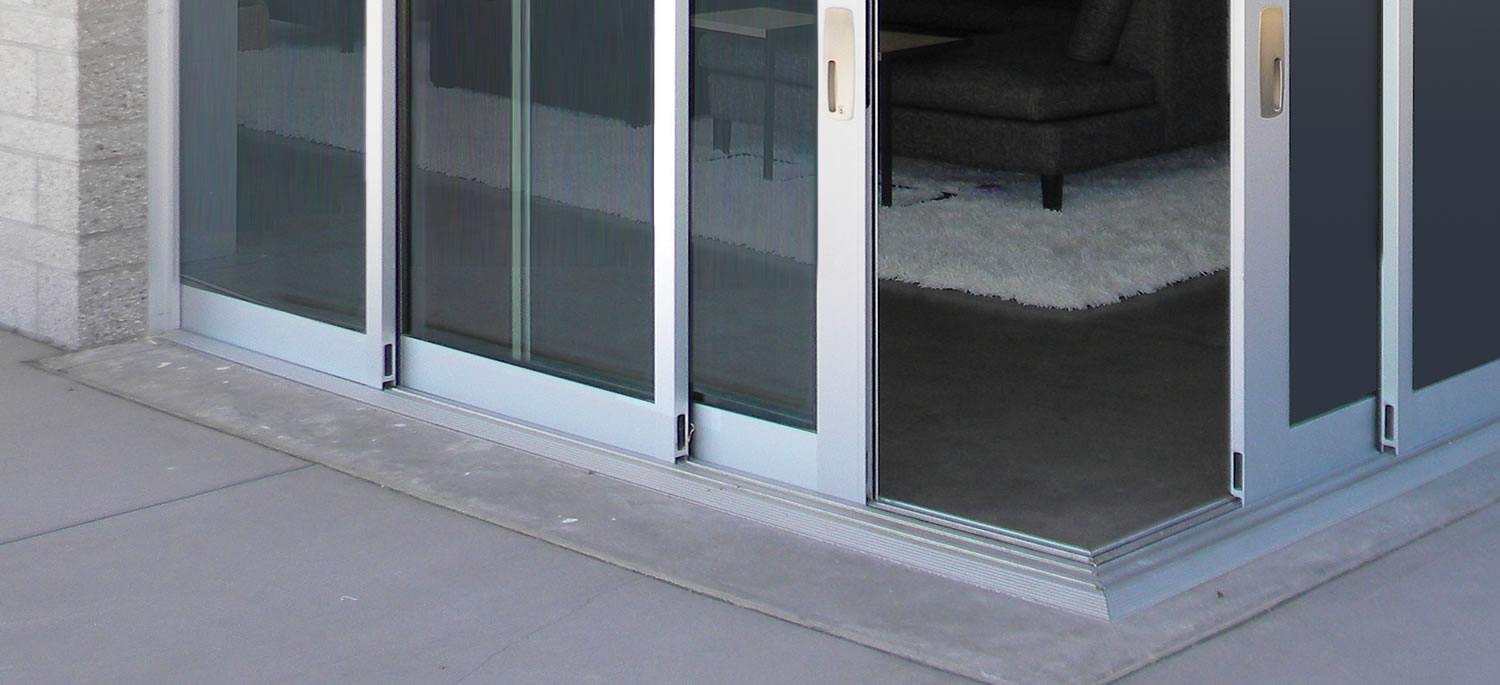

The Keltic sliding door offers a slim design with a strong, rigid patio door that creates the perfect passageway between your home and the outdoors.
Product Details
Key Features
Window Configurations
Hardware
Roll-Xtreme
Keltic 7600 / 7700 Sliding Door System Key Features
- 4 1/2” or 5 7/8” Nail Fin or Block Frame
- 1 7/8” Steel Roller or Optional Stainless Steel Roll-Xtreme 3 inch diameter wheels with heavy duty Stainless Steel Bearings
- Stainless steel track cover standard
- 1 5/8”, 2” and 3” Sill
- Recessed locking handle with multi point locking system – keyed entry standard
| Features | 7620 FIN or 7680 Block | 7622 FIN or 7682 Block | 7722 FIN or 7782 Block |
|---|---|---|---|
| Rating | LC25 | LC35 | CW40 |
| 4 ½” Frame | OPT | STD | STD |
| 5 7/8 Frame | STD | OPT | OPT |
| 1 5/8 Sill Height (5 7/8 wide) | STD | N/A | N/A |
| 2” Sill Height (4 1/2 wide) | N/A | STD | N/A |
| 3” Sill Height (4 1/2 wide) | N/A | OPT | STD |
| Multi Point Hardware Standard | STD | STD | STD |
| 1 13/16 Roller | STD | N/A | N/A |
| 3” Roll-Xtreme Roller | OPT | STD | STD |
| Standard Low-E Glass | STD | N/A | N/A |
| Standard ¼” Low-E Glass | OPT | STD | STD |
Keltic 7600 / 7700 Sliding Door System Configurations
Keltic 7600 / 7700 Sliding Door Handle
What Hardware Goes on this page? The brochure does not have any.

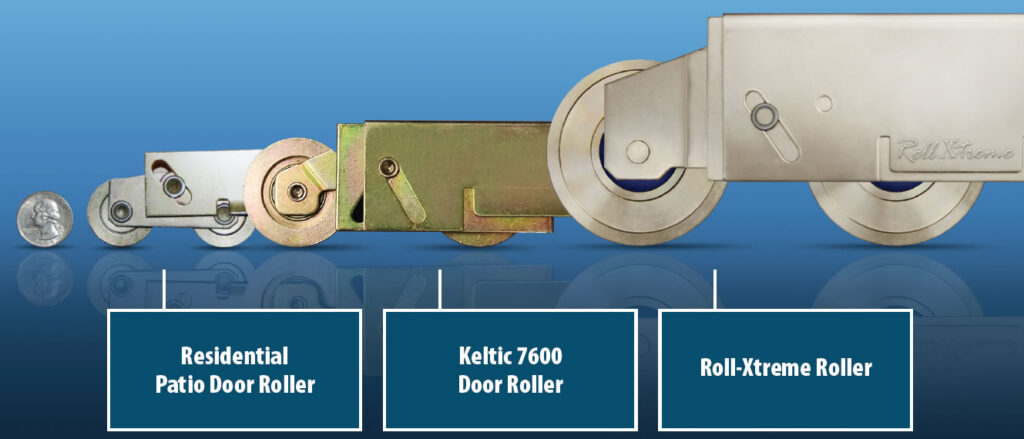

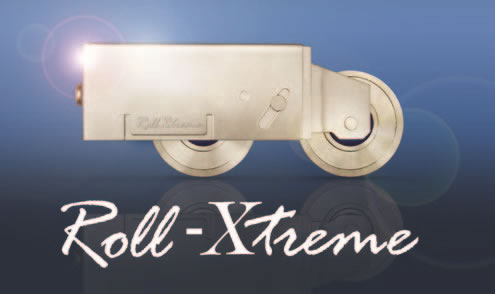

Roll-Xtreme
Upgrade to Roll-Xtreme for better performance
3 inch diameter wheels with heavy duty stainless steel bearings
