Lanai Series 5000 Vinyl Out Swing &
Lanai Series 5100 Vinyl In Swing Doors
The Lanai Series Vinyl Doors
The architectural beauty of our Lanai vinyl doors provide endless opportunities to enhance and compliment the design of your home. Lanai Hinged doors are designed for performance and durability. IWC’s Lanai door panels are reinforced with an extruded aluminum core and mechanically joined corners for added strength and durability.
Product Details
Finishes
Window Configurations
Dual Gazed Design
Frame Types
Hardware
Grid & Glass Options
Choice of these popular finishes with matching hardware keep lead times to a minimum.
Colors shown are approximate due to screen limitations.
In Swing and Out Swing Hinged Door Operating Styles

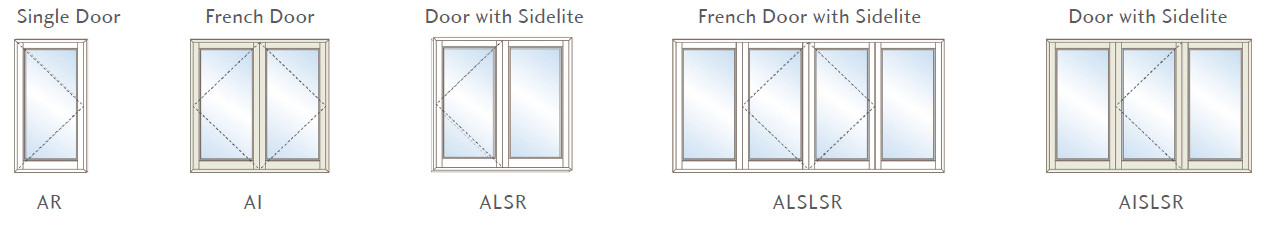

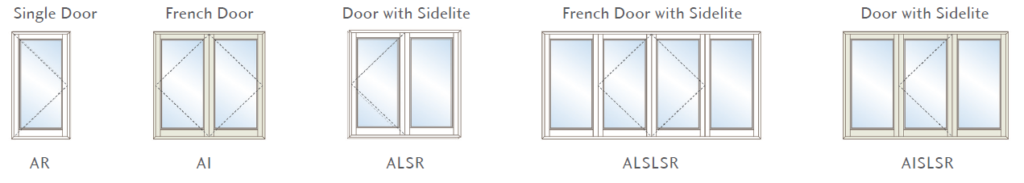

Single, French and Doors with Equal Fixed Sidelites

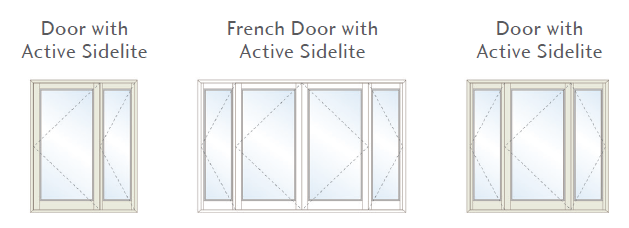

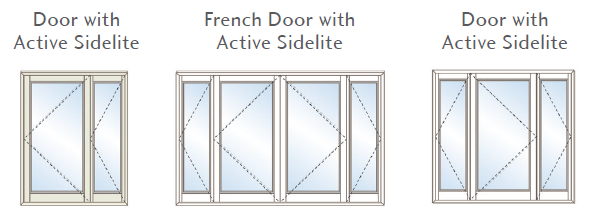

Doors with Operable Sidelites
Outswing have casement operators, inswing have thumb pull for ease of operation.
- 1″ Nail On, Flush Fin or Block Frame options.
- Continuous welded frame with aluminum reinforced subframe.
- True stile and rail sash construction for a traditional french door appearance.
- 5 1/2” Frame Width.
- 10” bottom rail and low profile threshold available.
- Operable sidelights with casement operators and standard hardware available.
- Handle styles and optional finishes to enhance the beauty of your home see page 37.
- Four way adjustable hinges, to ensure ease of installation and operation.
Dual Glazed Design
Multiple window frame profiles are available on Crown products. Four styles of frames are available to meet various applications. The flush fin frame is utilized for replacement of your outdated windows. The block frame is utilized for replacement or new construction applications. The nail-on fin frame is most commonly utilized for new construction applications.
Frame Types For Every Project
Product Hardware – Door Handles

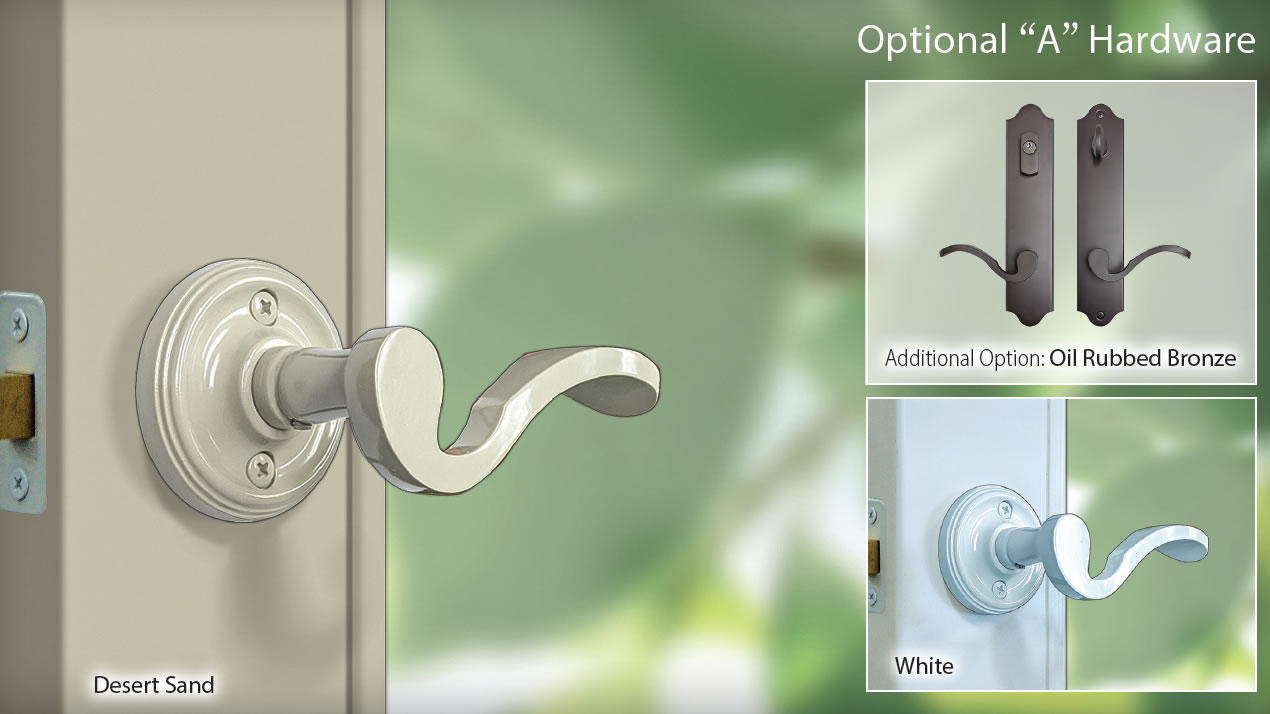

Lanai Hinged Doors – Standard Hardware: Desert Sand and White
Grid Options
Select sculptured or flat grid designs in a variety of patterns for custom looks.
Typical Grid Patterns
Some of the more common patterns shown. Custom patterns available.
Decorative Glass Options
Light and privacy with textured and tinted glass. Some of our popular choices:
Additional Glass Options
All windows and doors have standard dual glazing with choice of Low E or Extreme Low E glass, plus these additional glass options.
- LAMINATED GLASS: Two pieces of glass with an inner layer of transparent plastic for safety and sound reduction.
- TEMPERED GLASS: Strong, break-resistant safety glass. Breaks into small pieces when shattered.
- ARGON GAS: An inert, non-toxic gas used in insulating glass units to reduce heat transfer.
- ENERGY SHIELD XTREME GLASS: Blocks more heat and ultraviolet light.
- ILE GLASS: A hard coat of Low E on the 4th surface.
